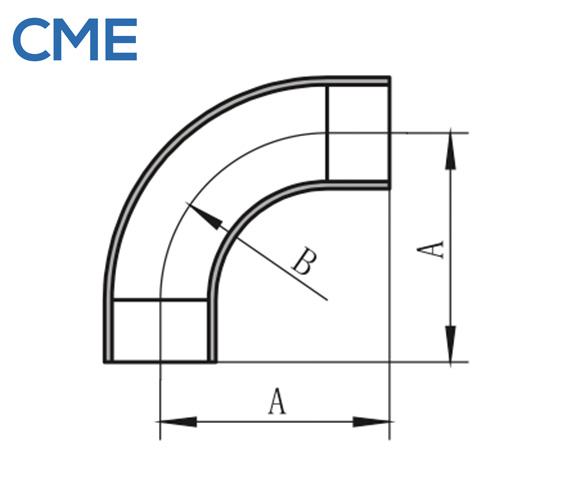

90° Long Elbow is used to change the direction of a pipe or flow by 90 degrees.  Elbow can be installed in any angle for different applications.

The long elbows offer the less frictional resistance to the fluid than short type as the radius of curvature is 1.5 times the nominal diameter.

l  Compliable with 3A Sanitary Standard and the U.S. tube diameters.

l  Size range:  1/2" - 6"

l  Roughness:  Ra 0.8μm (Ra 32μinch)

l  Stainless steel material:  304 / 316L
