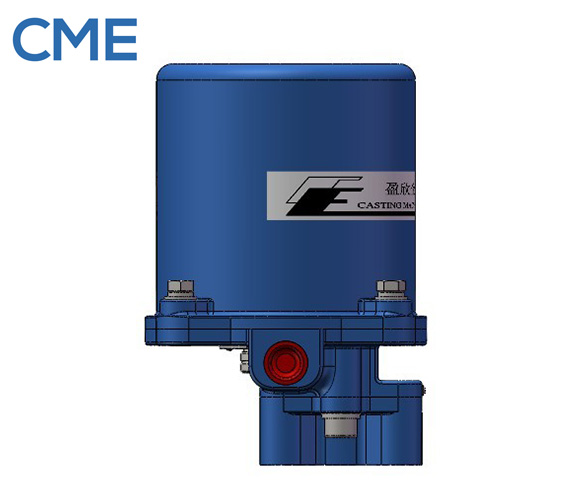

Electric Valve Actuator

Available in a variety of voltages, control options and enclosures.  All electric actuators are standard with ISO 5211 mounting interface and are used on all valves.

l  Extended duty cycle induction motor.

l  ISO5211 mounting interface.

l  One year manufacturer's warranty.

l  Tested to 1 million cycles.

Electric Actuation

1. Size: 6Nm (53Lb/in) 15Nm (132Lb/in)

2. Environmental Rating: IP67, NEMA 4X / 5

3. Working Temperature: -30℃ ~ +65℃ （-22℉ ~ +149℉）

Introduction:

1. Compact size for install in small space.

2. NEMA 4X waterproof and dust proof.

3. Manual operation can be applied in a power outage.

4. Built in thermal protection prevents motor burn out.

5. Simple design, easy operation.

6. ISO 5211 Flange connection is used for mounting actuators to valves and a raised mechanical position indicator is used to enable the operators to identify the valve position.

Approvals:

l  Enclosure is NEMA 4 and 4X waterproof and dust proof

l  Enclosure is ROHS compliant

l  Conforms to CSA-C for outdoor use

Materials:

l  Enclosure: lightweight powder coated aluminum alloy with plastic cover (larger model enclosure: aluminum cover)

l  Gear train: high alloy steel
