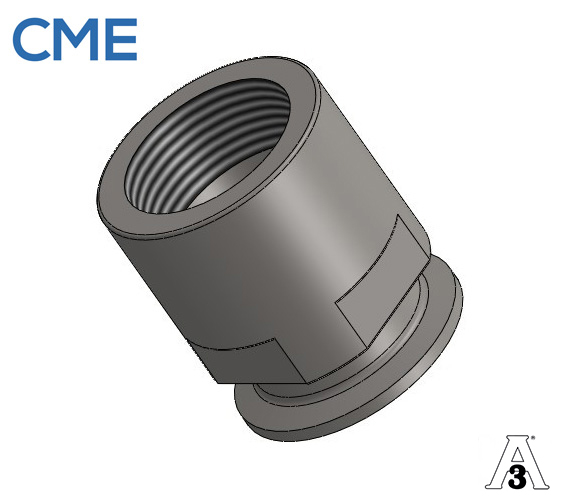

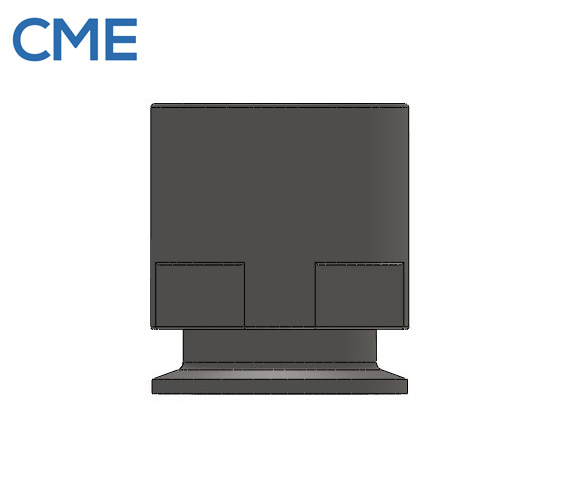

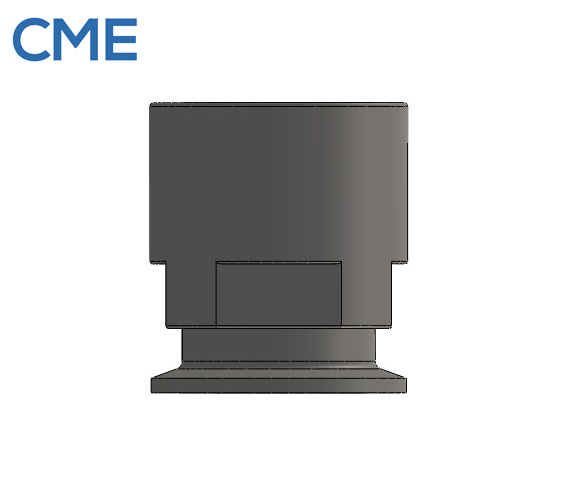

3A Female NPT Adapter / 22MP

NPT (National Pipe Thread) adapter is a standardized fitting with the tapered threads in a wider diameter at the base of the threads.

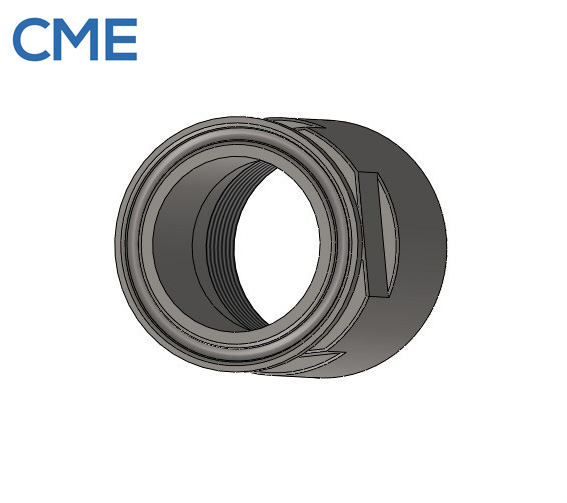

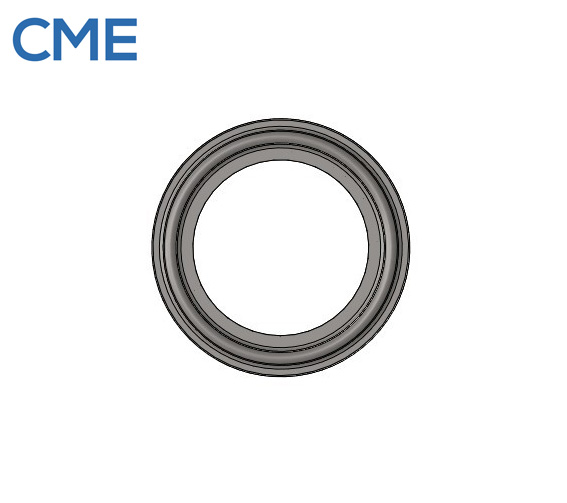

The female threaded end is used to tighten with a male threaded adapter to create the connection.  The other tri-clamp end could be used to convert a tri-clamp connection to a male/female NPT threaded fitting.



l  Manufacturing and design according to 3A Sanitary Standard and the specification for USA tube sizes.

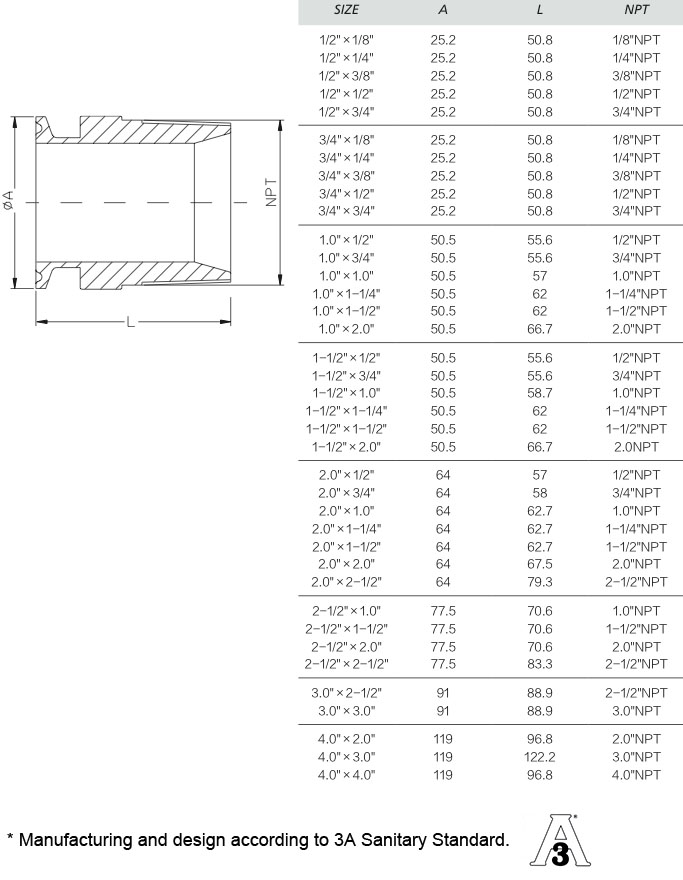

l  Size range:  1/2" ~ 4"

l  Roughness:  Ra 0.8μm (Ra 32μinch)

l  Stainless steel material:  304ss, 316L

l  Gasket : EPDM , Silicone , FKM , PTFE
l  Manufacturing and design according to 3A Sanitary Standard.
